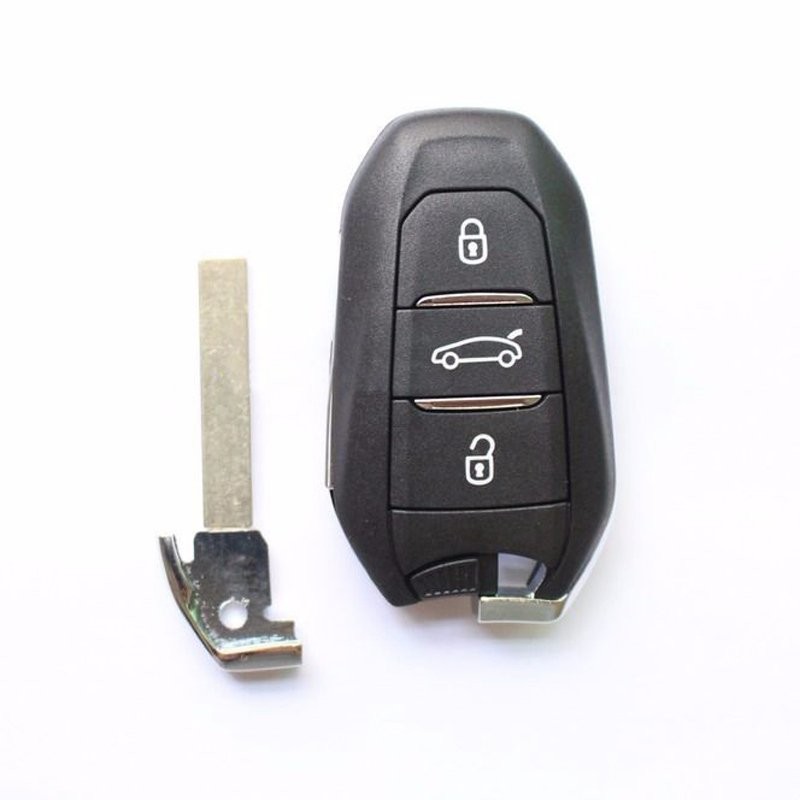

Remote key transmitter compatible with Citroen Peugeot IM3A A3M05 A3M15 A3M65

Remote control transmitter compatible with Citroen Peugeot

3 buttons: open/close/trunk

Frequency: 433MHz FSK

Transponder: ID49 ID4A

Hands-free function: yes

Key blade supplied HU83

Battery: included

Condition: new

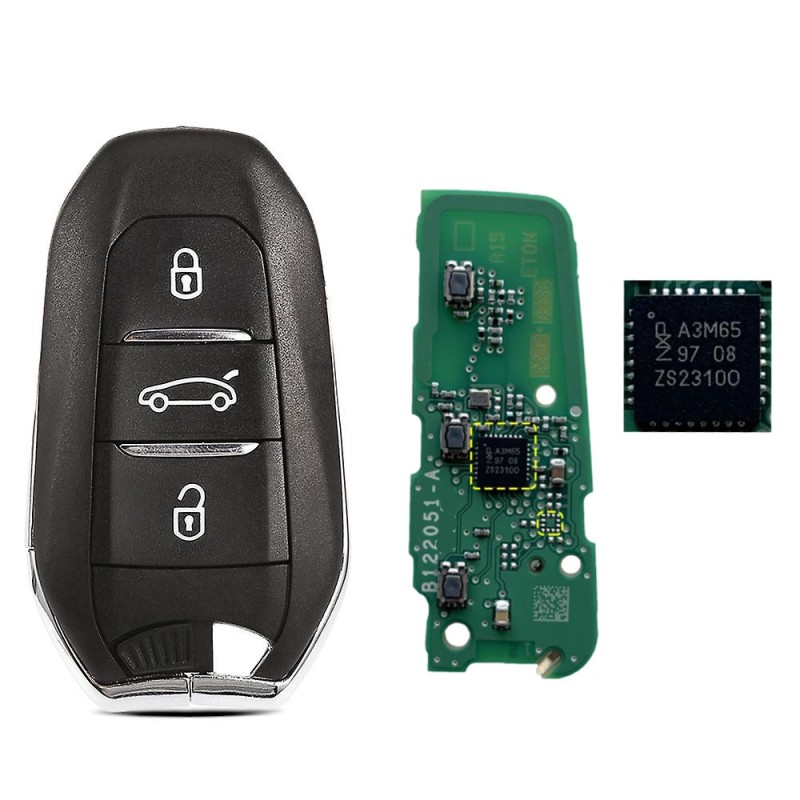

Compatible with IM3A PCBs where the microchip must be: A3M05, A3M15, or A3M65

Important: Before programming, please check the microchip reference on the PCB of the original remote control.

Mode selection method for each A3MXX IC

A3M05: Remove the battery, press and hold the center button (light or trunk), then reinsert the battery, press and hold the button for more than 3 seconds and release.

A3M15: Remove the battery, press and hold the release button, then reinsert the battery, press and hold the button for more than 3 seconds and release.

A3M65: Remove the battery, press and hold the lock button, then reinsert the battery, press and hold the button for more than 3 seconds and release.

Compatible vehicle application:

- 308 from 2019 to 2023
- 508 from 2019 to 2023
- 3008 from 2019 to 2023
- 5008 from 2019 to 2023

- Expert from 2019 to 2023
- Traveller from 2019 to 2023

- Berlingo from 2019 to 2023
- C3 from 2019 to 2023
- C4 Spacetourer from 2019 to 2023
- C5 Air Cross from 2019 to 2023

Compatible equivalent references:

13404602, 13500218, 13504196, 13504273

This transmitter is blank and must be programmed to the vehicle using a suitable diagnostic tool or key programmer in order to function.
